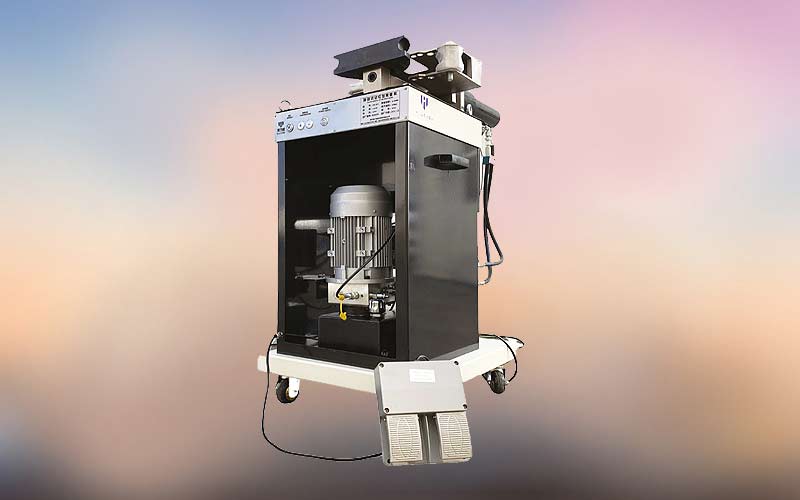

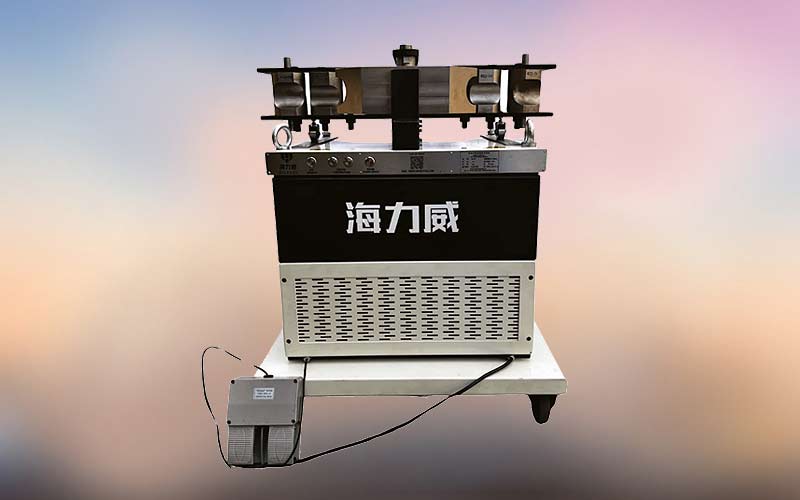

Mobile Hydraulic System / Automatic Pipe Bending Machine
- Integrated Push Die
- Integrated Clamping Die

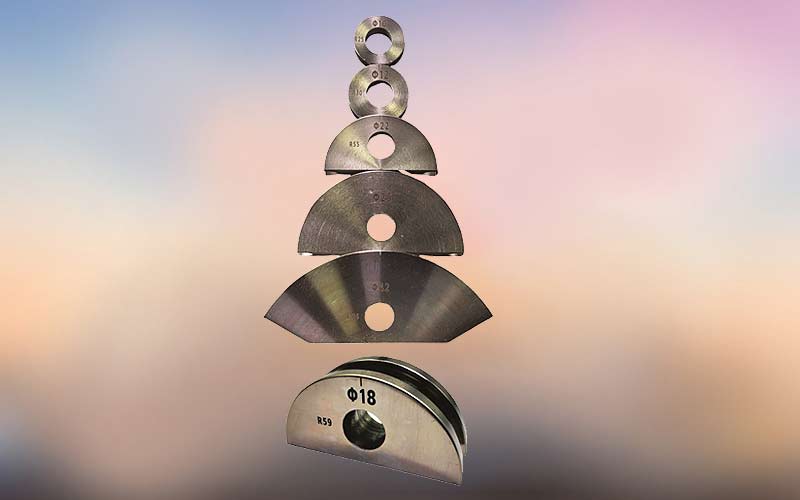

- Diameter Die

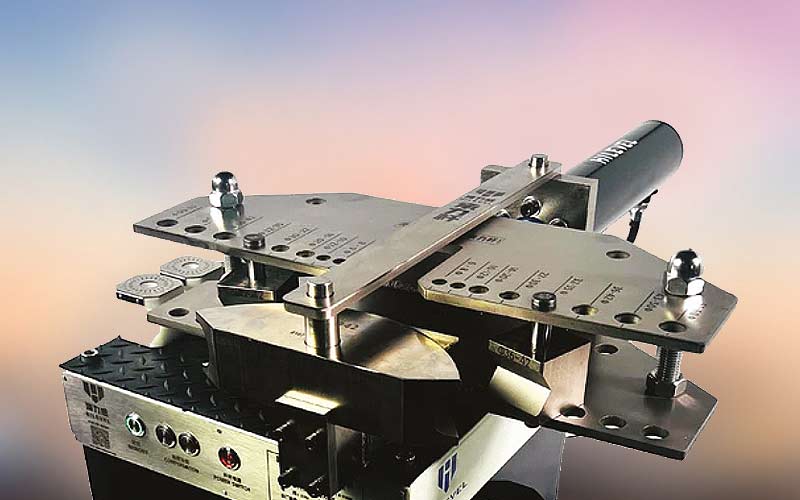

- Control Panel
Angle Memory, Speed Adjustment Selection, Angle Compensaiion - Servo Hydraulic System
- Foot Control Panel
- Control Panel
Angle memory, Speed Adjustment Selection, Angle Compensation - Foot Control Panel
- Servo Hydraulic System
- Integrated Push Die
- Diameter Die 6mm-89mm
- Each size Pipe Diameter
- Corresponds to only one
- Diameter Die

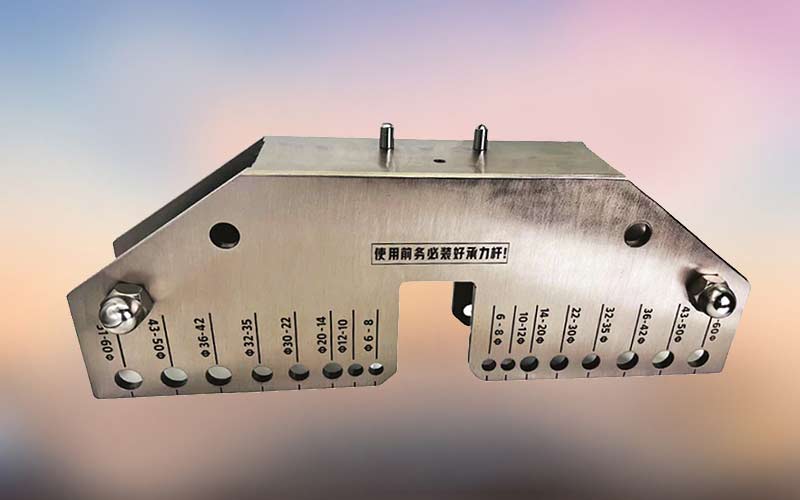

- Load Bearing Rod

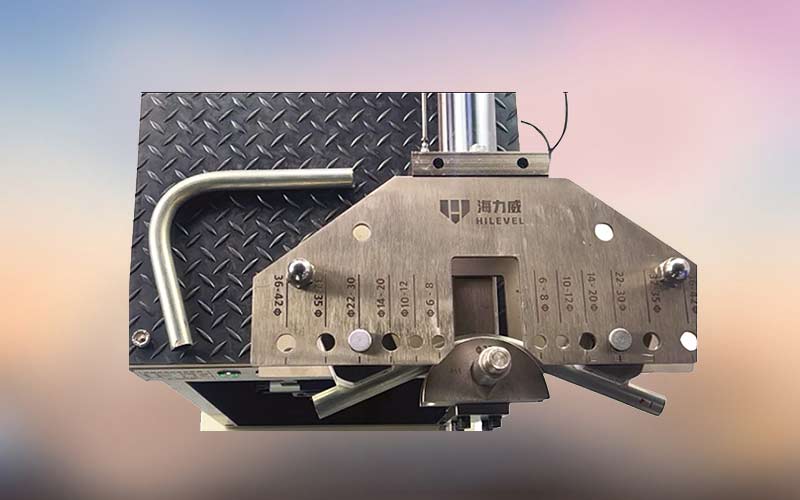

- Integrated Push Die
- Integrated Clamping Die
- HM 42 Integraed Puch Die
| Pipe diameter and Outer Diameter (mm) | Bending Radius | Minimum Thickness |
|---|---|---|
| ȹ6(1/4") | 2.5XǾ | Ǿ6(1.0mm) |
| ȹ8 | 2.5XǾ | Ǿ8(1.0mm) |
| ȹ10(3/8") | 2.5XǾ | Ǿ10(1.5mm) |
| ȹ12(1/2") | 2.5XǾ | Ǿ12(1.5mm) |
| ȹ14 | 2.5XǾ | Ǿ14(1.5mm) |
| ȹ16 | 2.5XǾ | Ǿ16(1.5mm) |
| ȹ18 | 2.5XǾ | Ǿ18(2.0mm) |
| ȹ20(3/4") | 2.5XǾ | Ǿ20(2.0mm) |
| ȹ22 | 2.5XǾ | Ǿ22(2.0mm) |
| ȹ25(1") | 2.5XǾ | Ǿ25(2.5mm) |
| ȹ28 | 2.5XǾ | Ǿ28(2.5mm) |
| ȹ30-32(1-1/4") | 2.5XǾ | Ǿ30-32(2.5mm) |
| ȹ35 | 3XǾ | Ǿ35(3mm) |
| ȹ38(1-1/2") | 3XǾ | Ǿ38(3mm) |
| ȹ42-60(2") | 3XǾ | Ǿ42-60(4mm) |
| ȹ60-89(2-1/2"3-1/2") | 3.5XǾ | Ǿ60-89(4mm) |
| ȹ89-114(4"-41/2") | 4XǾ | Ǿ89-114(5mm) |
